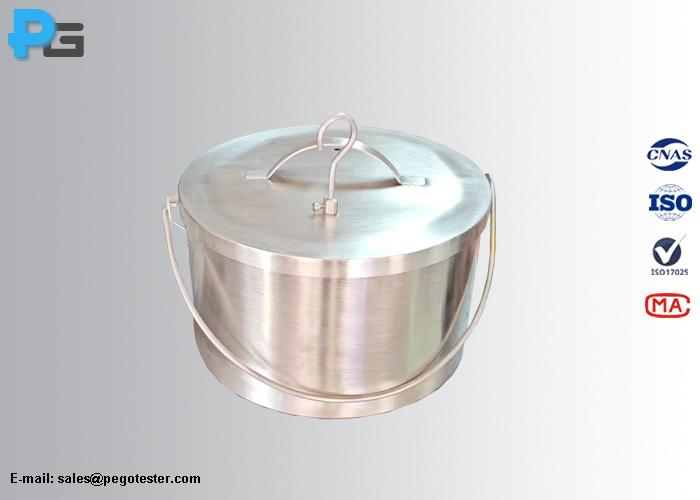

SASO167 Standard Aluminum Pans for Tesing Top Burner
1. Introduction

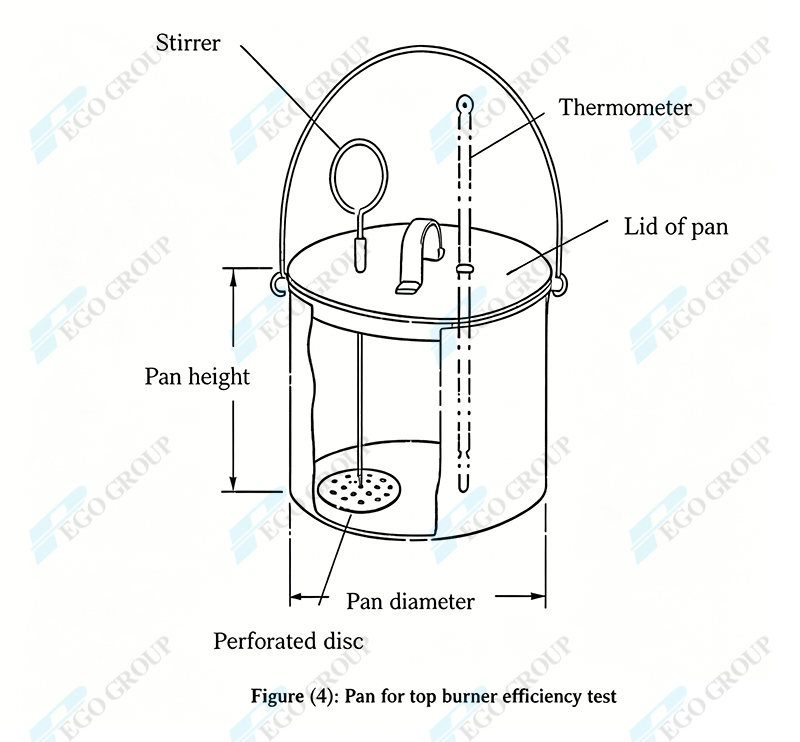

The standard aluminum pans is designed according to SASO167 figure 11 and table 1 for testing the performance of top burners. The pan body and lid are made of aluminum with a thickness ranging from 1.2 mm to 1.5 mm. Each pan is equipped with an aluminum stirrer, the stirrer passes through the lid and with a perforated disc of approximate 100mm diameter at its end. A through hole is pre-drilled on the lid to secure thermometer, and the thermometer shall be supplied by the user.
2. Specification
| Pan Inner diameter (mm) | Pan Height(mm) |
| 180 | 120±1% |
| 200 | 130±1% |
| 220 | 140±1% |
| 240 | 150±1% |
| 260 | 160±1% |
| 280 | 170±1% |
| 300 | 180±1% |
| 320 | 190±1% |
