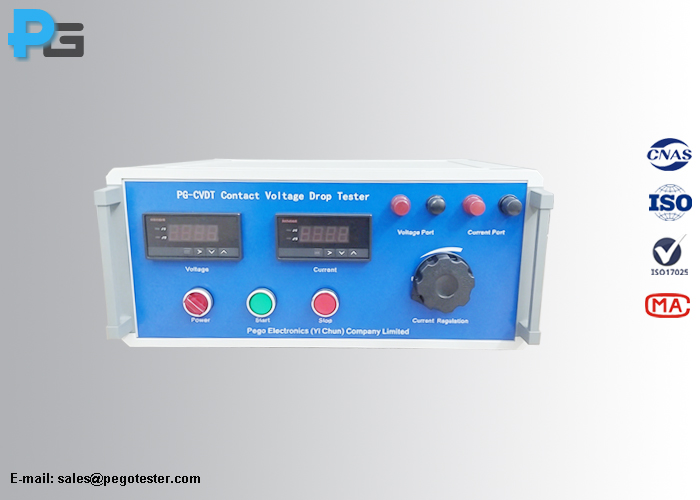

Contact Voltage Drop Tester
1. Introduction
Contact voltage drop tester is developed according to the requirements of IEC60884.1 and GB/T2099.1. The instrument has adjustable high current output terminal, micro voltage test terminal, intuitive reading, easy operation and other characteristics. It is used to test the voltage drop of automobile wiring harness terminals, the contact voltage drop of threadless terminals and the contact voltage drop of non-detachable power plugs after the bending test.
2. Specification
| Test current | AC 0-50.0A adjustable |
| Drop voltage measurement range | 0-199.9mV |
| Voltmeter accuracy | ±1.0%F.S±3digits |
| Ammeter accuracy | ±1.0%F.S±2digits |
| Working power (input) | AC 220V±10%, 50-60Hz |
| Working environment | Temperature: 0-60℃
Humidity: 20-95%RH A place without violent shaking, impact, vibration and corrosive air |
