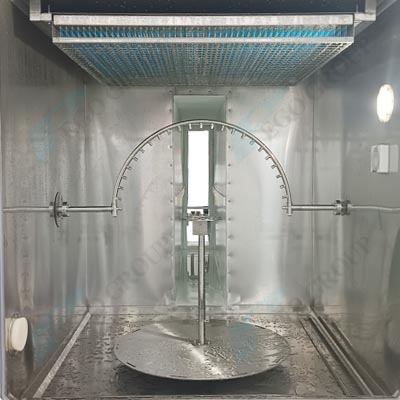

Waterproof performance directly defines the service life and safety of products in electronics, electrical appliances, auto parts, outdoor equipment and other industries. And IP rating testing complying with international standards is the core of quality control. The IPX1 to IPX6 comprehensive Waterproof Test Chamber is R&D and designed strictly in accordance with IEC60529 standard. It integrates core testing components including drip box, oscillating tubes and jet hose nozzles, fully covering the water ingress testing needs of IPX1 to IPX6 ratings. With outstanding performance, stable quality and humanized design, it becomes the preferred testing equipment for enterprise, laboratories and quality inspection institutions, providing accurate and reliable solutions for verifying product waterproof performance.
Premium Materials Ensure Durability and Stability
Equipment quality starts with material selection. The IPX1-6 Comprehensive Waterproof Test Chamber adopts high-standard materials from inside to outside, balancing aesthetics and durability. Its outer shell is precision machined from high-quality domestic steel plates and treated with professional spray painting and baking finish. It not only boasts superior texture and wear resistance, but also resists corrosion in daily environments, remaining intact after long-term use. Core testing components such as the inner chamber, turntable and swing pipe are all made of SUS304 stainless steel, featuring strong rust resistance. Even in the long-term humid testing environment, it can effectively avoid rust and deformation, ensure consistent testing accuracy and extend the service life of the equipment.
The equipment is also equipped with multiple protection and optimized designs to further improve operational stability. It comes standard with a high-precision filter, which can efficiently filter impurities in tap water, prevent nozzle clogging and avoid affecting test results. The filter element supports regular replacement for easy maintenance. The box-type structure is built with an independent water tank to realize circulating water design, which is both energy-saving and environmentally friendly, and avoids the trouble of frequent water refilling. The automatic water inlet system is paired with a low water level alarm function, which monitors the water level in real time and alarms promptly when water is insufficient, preventing equipment damage caused by idling and protecting the safe operation of the equipment in an all-round way.
Graded Accurate Testing for Diverse Scenarios
Aiming at the core requirements of waterproof testing for different grades from IPX1 to IPX6, the equipment optimizes the design of each link in a targeted manner, ensuring that each test meets the standards accurately and adapts to diversified product testing scenarios.

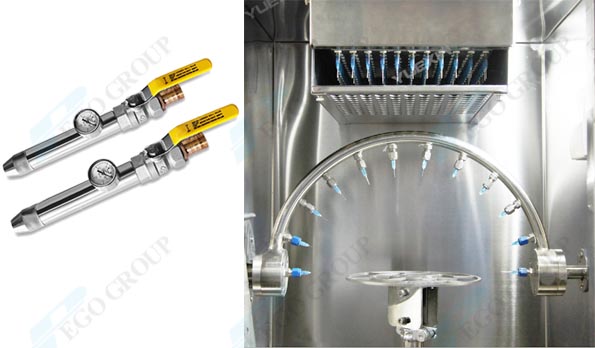

For IPX1 and IPX2 vertical rain testing, the drip board adopts a vacuum stainless steel structure design with higher strength and better sealing performance. The nozzle contact position is designed with a brass cone for precise installation of water spray needles and uniform water dripping. It is also equipped with a compressed air drying function (air source provided by the user). After the test, excess water in the drip board can be discharged quickly, fundamentally avoiding nozzle clogging caused by water accumulation and scaling, maintaining the long-term stable operation of the equipment and eliminating the need for frequent cleaning and maintenance.
In the IPX3 and IPX4 oscillating tube testing, the oscillating tube is driven by a high-quality stepper motor. Compared with ordinary motors, the stepper motor enables precise adjustment of the oscillating tube speed and angle, and completely eliminates step loss. It effectively avoids equipment damage caused by the oscillating tube hitting the turntable shaft due to abnormal movement, greatly reduces the risk of equipment failure and ensures the continuous and stable testing process.
IPX5 and IPX6 high-pressure water spray testing are manufactured in strict accordance with IEC60529 standard. The nozzle structure and water spray pressure are accurately matched with the standard requirements, which can simulate a high-intensity water spray environment and accurately detect the waterproof performance of products in harsh humid environments. It provides a reliable testing basis for products with high waterproof requirements such as outdoor equipment and auto parts.
Intelligent Control for Visual and Convenient Testing
The equipment simplifies the operation process with intelligent design, improves testing efficiency, and ensures the whole testing process is fully monitorable and precisely controllable. The core control system is equipped with a 7-inch touch screen and Panasonic PLC, with a concise and intuitive operation interface and clear parameter setting. Electrical components are all selected from well-known imported brands such as LS and Omron. The wiring process complies with national standards, with reasonable board layout, firm wiring and clear marking. It ensures the stable operation of the equipment from hardware to process and reduces the failure rate.
The turntable is also driven by a high-quality stepper motor. Its speed and angle can be freely set through the touch screen, realizing precise stepless adjustment within the standard range, and supporting automatic forward and reverse rotation control. This design is especially suitable for the sample power-on testing scenario, which can effectively prevent wire winding and avoid test interruption or sample damage. The door is equipped with a tempered glass transparent observation window, paired with an LED light inside the chamber. During the test, the internal sample status and test details can be clearly observed, and the real-time situation can be mastered without interrupting the test, improving testing convenience.
For special testing requirements, the equipment is also equipped with a variety of practical functions. It has a built-in AC220V, 10A sample power socket, supporting program-set sample power on/off time, and realizing cyclic control of “power off – power on – power off” with an adjustable time range of 0-999 minutes, perfectly adapting to scenarios where samples need to be powered on and off during the test. The total test duration also supports free setting from 0 to 999 minutes, which can be flexibly adjusted according to different product standards to meet diversified testing needs.
Wide Industry Application for Quality Guarantee
With comprehensive testing capabilities, stable performance and humanized design, the IPX1-6 Comprehensive Waterproof Test Chamber is widely applicable to product waterproof testing scenarios in various industries. In the electronics and electrical industry, it can be used to verify the waterproof rating of mobile phones, earphones, chargers, sensors and other products. In the automotive industry, it can conduct waterproof testing for auto parts such as car lights, wire harnesses and on-board equipment. In the outdoor equipment field, it is suitable for testing the waterproof performance of outdoor lighting, security cameras, outdoor power supplies, fitness equipment and other products. It also meets the testing needs of quality inspection institutions, research institutes, enterprise laboratories and other scenarios, providing strong technical support for product R&D, production quality inspection and compliance certification.
Choosing the IPX1-6 Comprehensive Waterproof Test Chamber means choosing precise and reliable testing equipment, as well as guaranteed quality and efficient experience. With strict standards, exquisite craftsmanship and intelligent design, the equipment helps enterprises accurately control product waterproof performance, enhance core product competitiveness, and gain a firm foothold in the fierce market competition.
