In industries like industrial manufacturing, automotive electronics, outdoor equipment and new energy equipment, products encounter not just daily rainfall, but extreme water environments characterized by high temperature, high pressure, and intense flushing — including high-pressure car washing, steam cleaning, high-temperature spraying, and harsh operational conditions. Every water impact puts product sealing and reliability to the ultimate test.
IPX9 and IPX9K waterproof testing stand as the highest-level waterproof verification standards to address this challenge. They serve as the core pass for products to enter high-end markets, pass stringent certifications, and win user trust.
IPX9 and IPX9K: Authoritative Definition of Top-Tier Waterproofing
The IP protection rating is an internationally accepted standard for enclosure protection. IPX9/IPX9K represents the highest tier of waterproof performance, specifically engineered for high-temperature, high-pressure, short-distance water jet environments.
IPX9 complies with IEC 60529 standard. And is used for high-temperature and high-pressure waterproof testing of general products, such as electronics, home appliances, and outdoor equipment.
IPX9K, in contrast, adheres to the ISO 20653 (formerly DIN 40050-9) automotive-grade standard, specifically designed for harsh industrial scenarios including automotive, new energy, and construction machinery. It features more rigorous simulations of pressure, temperature, and operating conditions, making it a mandatory requirement for exporting to Europe and America and accessing the automotive supply chain. While both belong to the highest waterproof class with similar test pressure and temperature parameters, IPX9K imposes stricter requirements on sample rotation speed, nozzle structure, and test procedures, serving as a key certification for entering the automotive supply chain and high-end European and American markets.
Both share the same core test conditions, representing the industry’s top waterproof verification:
–
Water temperature: 80℃±5℃ high-temperature hot water
– Water pressure: 80–100bar (8–10MPa) high-pressure jetting

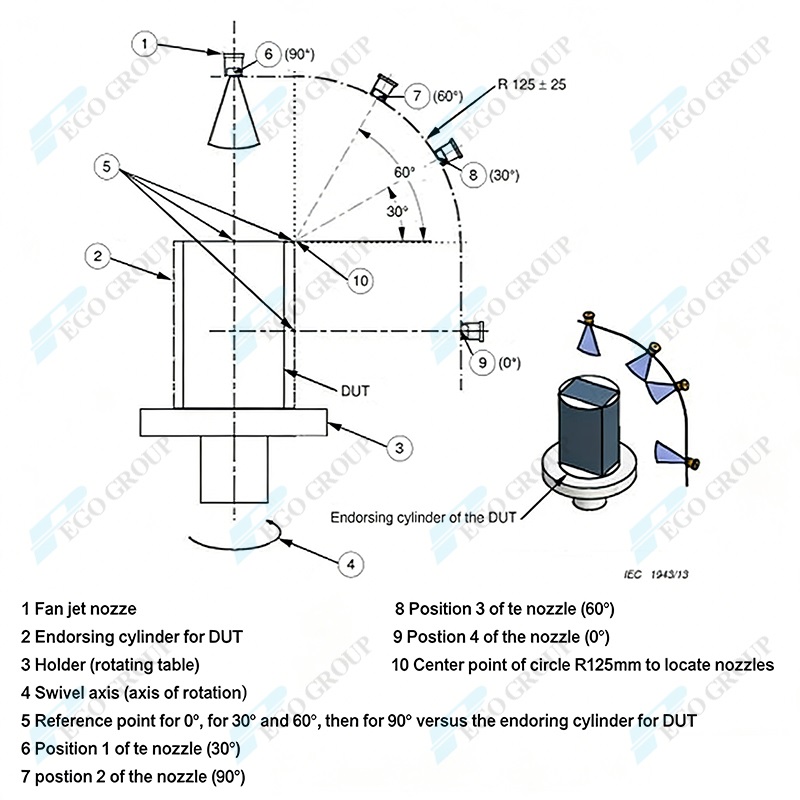

– Angles: 0°/30°/60°/90° full four-directional spraying
– Distance: 100–150mm short-distance intense flushing
– Duration: ≥30 seconds of spraying per angle, with the sample rotating for uniform testing
Why Must Perform IPX9/IPX9K Waterproof Testing?
1. Eliminate Hidden Risks Through Extreme Scenarios
The dual stresses of high temperature and high pressure quickly expose sealing defects, structural gaps, and material aging, preventing water leakage, short circuits, corrosion, and failure during actual product use.
2. Meet Mandatory Requirements for Automotive, Industrial, and Export Use
IPX9K has become a rigid entry criterion for automotive components, new energy three-electric systems, on-board electronics, outdoor industrial control, and medical equipment, directly determining access to the high-end supply chain.
3. Enhance Product Competitiveness and Brand Trust
Displaying the IPX9/IPX9K waterproof rating directly demonstrates quality strength, creating distinct advantages in bidding, marketing, and user selection.
4. Reduce After-Sales Costs and Quality Risks
Conducting extreme verification in the laboratory in advance significantly reduces water leakage complaints, rework, recalls, and safety accidents after mass production, delivering long-term cost savings.
Applicable Industries and Typical Products
Although both IPX9 and IPX9K fall under high-temperature and high-pressure waterproof testing levels, their applicable industries and typical products differ clearly due to varying standard stringency, accurately matching waterproof needs across different scenarios.
IPX9 complies with the IEC 60529 standard and is mainly applied in fields requiring a certain level of waterproofing but not extreme industrial or automotive-grade harsh environments. It covers industries such as general consumer electronics, ordinary outdoor equipment, and civil home appliances. Typical products include rugged mobile phones, smart wearables (e.g., outdoor watches, sports bracelets), outdoor speakers, household lighting, civil-grade security monitoring equipment, small outdoor instruments, power tools, household humidifiers and kitchen appliances. These products may encounter daily high-temperature spraying, high-pressure flushing, and other scenarios, and the IPX9 waterproof rating effectively resists such water environments to ensure normal operation.
IPX9K, adhering to the ISO 20653 (formerly DIN 40050-9) automotive-grade strict standards, is primarily suitable for industrial and automotive fields with extremely high waterproof requirements, such as automotive, new energy, and construction machinery. It acts as a core threshold for entering the high-end supply chain and exporting to Europe and America. Typical products include automotive electronics (on-board central control, on-board sensors, wiring harness connectors, on-board cameras, on-board chargers), new energy three-electric systems (battery packs, motor controllers, charging guns, charging interfaces), construction machinery components (electrical control units and instruments of excavators and loaders), industrial equipment (outdoor industrial control hosts, frequency converters, industrial-grade connectors, large outdoor lighting), as well as electrical components of rail transit equipment and marine electrical appliances. These products operate in extreme water environments, such as long-term high temperature, high-pressure flushing, and complex working conditions. IPX9K’s stricter test requirements ensure their sealing performance and operational reliability, preventing short circuits, corrosion, and failure caused by water leakage.
Why Choose PEGO?
PEGO offers one-stop IPX9/IPX9K waterproof testing solutions. Our equipment strictly complies with IEC/ISO standards, using high-quality steel plates and SUS304 stainless steel for durability and longevity. Its intelligent design enables automatic water intake, precise temperature control, and visual observation. Equipped with imported Italian water pumps, high-precision German sensors, and high-quality domestic stepper motors, it ensures efficient and stable testing. We integrate independently developed intelligent control systems and imported electrical components to provide the most reliable professional protection for your product quality.
