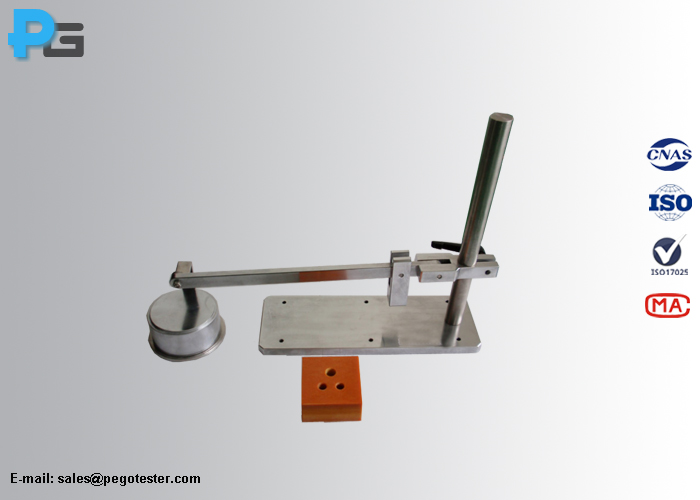

Mechanical Strength Test Apparatus on Resilient Covers
1. Introduction
Apparatus for mechanical strength test on resilient covers is designed according to BS1363-1 figure 2 & clause 9.3.1, BS1363-2 figure 2 & clause 9.3.1, BS1363-3 figure 2 & clause 9.4.1, for checking if the live parts of BS plugs with resilient covers is accessible to the users under normal use.
2. Specification
| Steady force | 230-240N |
| Loading surface | Stainless steel square (25.2-25mm) with chamfer R2.5~R2.0mm |
| Hardwood block | Designed according to BS1363-1 figure 2b |
3. BS1363-1 Figure 2 Apparatus for Mechanical Strength Test on Resilient Covers
