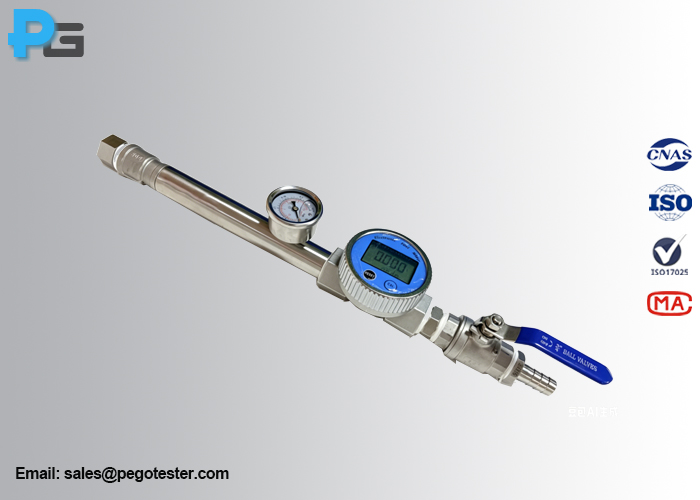

Shower Head Nozzle
1. Introduction

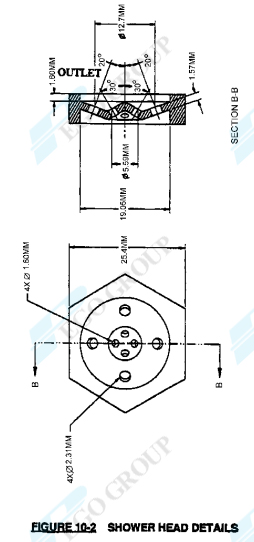

The spray head nozzle is strictly designed according to RTCA/DO-160G figure 10-2. Each of the areas under test shall be subjected to the spray for a minimum of 15 minutes. If desired, the test may be applied simultaneously to more than one area at a time by using an appropriate number of showerheads. The showerhead shall be located not more than 2.5m from the area under test and shall emit a volume of water greater than 450 liters per hour.
2. Parameters:
| Nozzle Hole Diameter | 4pcs Ø1.6mm, 4pcs Ø2.31mm |
| Outer diameter of the water pipe | Ø32mm |
| Outer diameter of the pipe connector | Ø16mm |
| Water flow | 450L/h |
| Pressure Gauge | Accuracy: class 2.5 |
| Material | SUS304 stainless steel |
