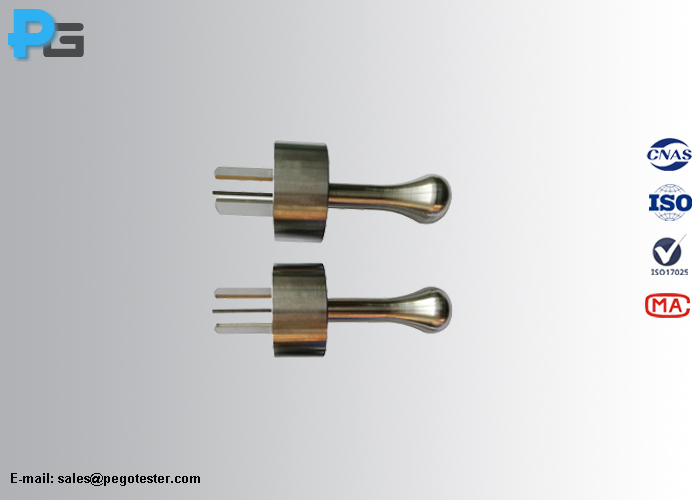

Three-Pin Test Plugs with Flat Pins (AS/NZS3112 figure C1)
1. Introduction
The three-pin test plugs with flat pins are designed according to AS/NZS3112 figure C1 and clauses 3.3.4&3.8.1, for checking three-pin flat pin socket-outlets (250V max.) against full insertion test and the finger test during normal insertion test.
2. Specification
| Material | Hardened steel |
| Quantity | 3 (10A*1, 15A*1, 20A*1) |
| Dimension | As per AS/NZS3112 figure C.1 |
AS/NZS3112 Figure C1
