BS1363 Tumbling Barrel
1. Introduction

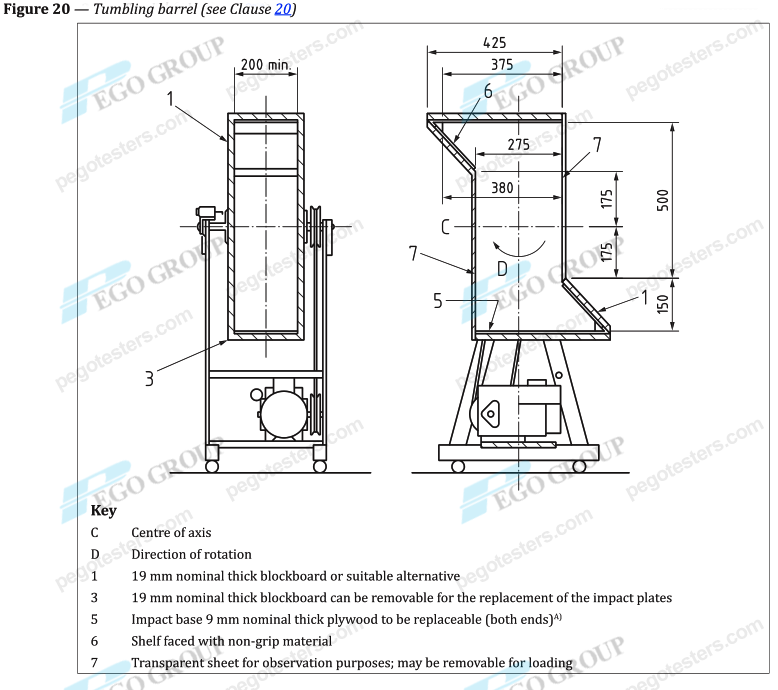

The tumbling barrel is designed to meet the test requirements of BS1363-1 clause 20.1.3, BS1363-2 clause 20.1.4, BS1363-3 clause 20.1.5 and BS1363-5 clause 20.2.2 and figure 20, for checking the mechanical strength of BS plugs.
2. Specification
| Control units | Button control+meter/touch screen |
| Test station | 1 |
| Rotating speed | 3-8R/min |
| Falling height | 500mm |
| Number of falls | 0-999999 (settable) Complete the prescribed number of falls, the equipment will auto stop |
| Working power | AC220V/50Hz, 100W max. |
| Sizes |  |
