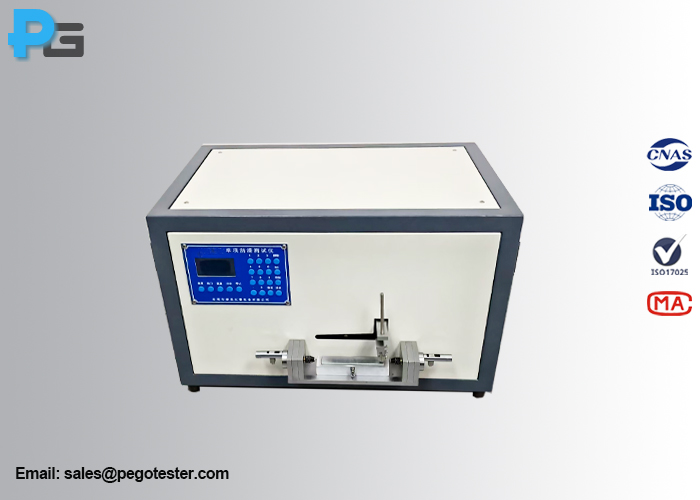

Enamelled Round Wire Abrasion Resistance Test Apparatus
1. Introduction
The enamelled round wire abrasion resistance test apparatus is designed according to IEC60851-3 clause 7 figure 1 and figure 2 and GB/T4074.3 clause 5.2. It’s used to test the abrasion resistance of the enamel film on round enameled wires with a nominal conductor diameter over 0.250 mm.
Principle:
A straight piece of wire is subjected to a unidirectional scrape test, by a needle to which a progressively increasing load is applied and which scrapes along the wire surface. The load that causes an electrical contact of the needle with the conductor is called the load-to-failure.
2. Specification
| Moveable distance of scraping device | >100mm |
| Scrape speed of scraping device | (400±40)mm/min |
| Scraper diameter | (0.23±0.01)mm |
| Sample rotation way | Automatically |
| Test voltage | DC (6.5±0.5)V |
| Short-circuit current | (20±0.5)mA |
| Scratch resistance error | <±5% |
| Weight | 5N*3, 2N*2, 1N*1, 0.5N*1, 0.2N*2, 0.1N*1 |
| Power supply | AC 220V±10%, 50Hz |
| Power consumption | <150W |
| Operating environment | Temperature: 0-40℃, relative humidity: ≤85% |
| Dimension and weight | L600*W350*375mm/35KG |
