IP test machine is a special tool used to detect the IP protection level (dust and water resistance level) of electrical equipment enclosures. Its core function is to simulate scenarios such as human contact and foreign object intrusion, verify the protection capability of equipment enclosures, and it is widely used in electronics, electrical, automotive, security and other fields.
1. Classification of the IP Test Machines
Its core classification is divided by test purpose, mainly including dust-proof probes and water-proof test machine, which are adapted to the test requirements of different IP levels: dust-proof probes are used to simulate the intrusion of solid foreign objects (such as fingers, metal wires, dust) to verify the dust-proof capability of equipment; water-proof testing machines cooperate with water spraying, immersion and other methods to detect the water-proof performance of equipment.

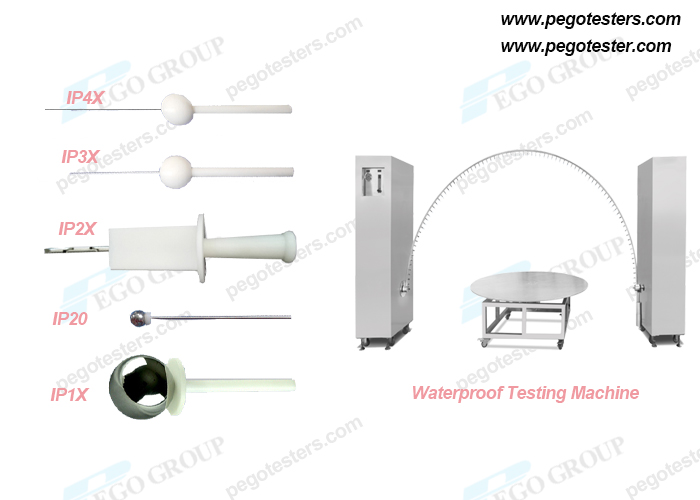

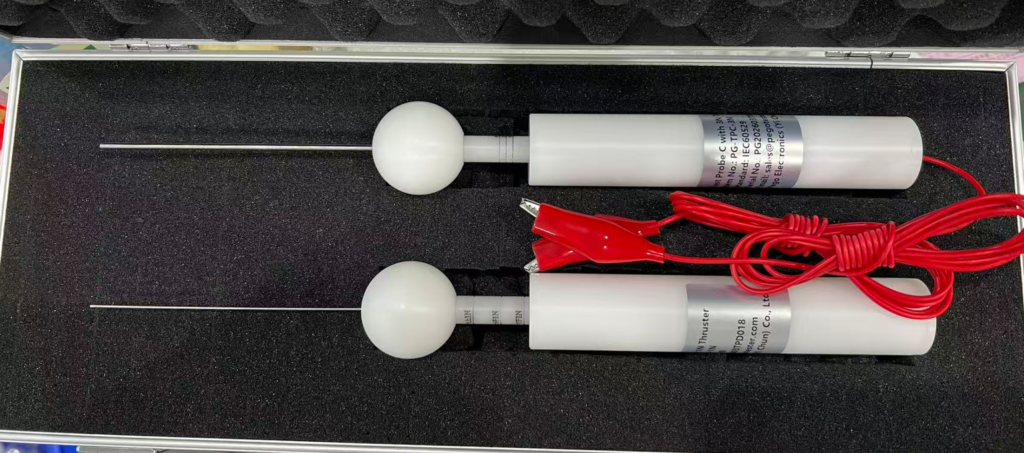

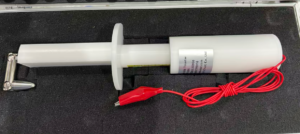

For the dust-proof probes, PEGO provide PG-TPA test probe A for IP1X testing, PG-TPB test probe B for IP2X testing (jointed finger test probe), PG-TPC test probe C for IP3X testing, PG-TPD test probe D for IP4X testing, PG-TP2 12.5mm test sphere for IP20 testing and PG-IPX56 IP56X dustproof chamber.
For water-proof testing machines, PEGO offers the PG-IPX12 ipx12 drip board testing machine, PG-IPX34S ipx34 spray nozzle, PG-IPX34 ipx34 oscillating tube testing machine, PG-IPX56A ipx56 hand-held jet nozzles, PG-IPX56 ipx56 waterproof testing machine, PG-IPX7 ipx7 immersion tank, PG-IPX8 ipx8 high pressure water tank and PG-IPX9 ipx9 high temperature and high pressure fan spray nozzles test chamber.
2. Key Features
2.1 Key features of IP test probes
The key characteristics of IP test probes are precise size and standard hardness. They must strictly comply with the IEC 60529 standard to ensure the accuracy and universality of test results. When in use, the corresponding specification of probe should be selected according to the IP level requirements of the equipment, and the operation should be standardized to ensure the reliability of test data, providing a core basis for the determination of equipment protection performance.
2.2 Key Features of Water-proof Testing Equipment
Water-proof testing equipment, as the core equipment for detecting water resistance, has the following prominent features to ensure accurate and reliable test results:
2.2.1 Standardized Design:
All equipment strictly complies with IEC 60529, GB/T 4208 etc. standard and industry specifications, ensuring the universality and authority of test data. For example, the spray angle, water flow rate, and immersion depth of each equipment meet the strict requirements of corresponding IP grades.
2.2.2 Precision Control:
Equipped with high-precision control systems, it can accurately adjust key test parameters such as water pressure, water flow, spray frequency, and immersion time. The error range of parameters is controlled within the standard allowable range, which effectively avoids test errors caused by parameter deviations.
2.2.3 Durable Material:
The main components and casings of the equipment are made of high-quality corrosion-resistant and rust-proof materials (such as 304 stainless steel, high-grade engineering plastics), which can resist long-term immersion and erosion of water, ensuring the service life and stable performance of the equipment.
2.2.4 Flexible Adaptability:
It can adapt to the test requirements of different types and sizes of electrical equipment. For small and precision equipment, it can be tested with a drip board or an oscillating tube; for large and heavy equipment, it can be tested with a spray nozzle or an immersion tank, with strong versatility.
2.2.5 Safe and Reliable: It is equipped with complete safety protection devices, such as water level protection, overpressure protection, and leakage protection, to ensure the safety of operators and equipment during the test process, and avoid potential safety hazards such as electric shock and water leakage.
In summary, IP test probes and related testing equipment are essential tools for verifying the IP protection level of electrical equipment, covering both dust-proof and water-proof testing needs. PEGO provides a complete range of standardized test products, from various dust-proof probes matching different IP levels to professional water-proof testing machines, which fully meet international standards and diverse industry test requirements. These equipment and probes ensure the accuracy, reliability and authority of test results through their precise design and stable performance, providing strong support for the quality control and safety assurance of electrical equipment in various fields.
